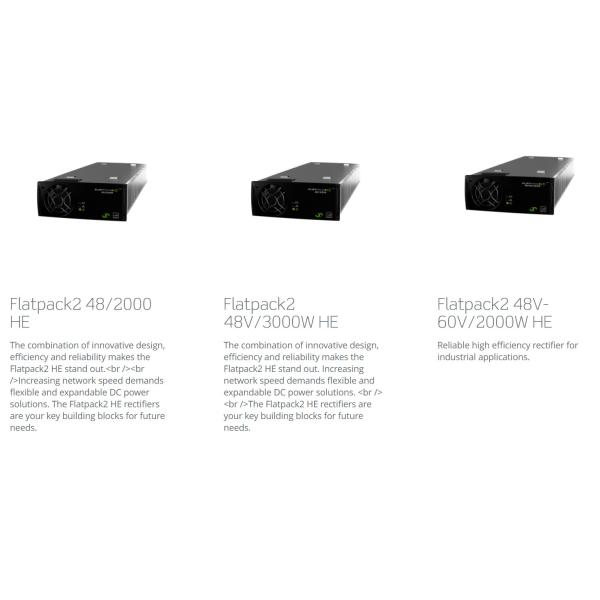

Eltek Integrated 19inch 48V 24KW Power System with Flatpack2 48/2000HE Smarptack Controller (241115.105)
Versatile and powerful solution for any application. The combination of high efficiency, power density and reliability makes the Flatpack2 a product family that truly stands out and provides unparalleled network availability.
The versatility of the Flatpack2 rectifier in combination with advanced control and monitoring means that it can be used in a wide variety of DC telecom applications, both for fixed grid and alternative energy across the globe.
Flatpack2 48V/24kW
The 4U distribution is designed to meet the demand for compact and flexible DC
power solutions. It is based on building blocks and has a variety of configurations
depending on power, controller, battery section and load section. Pluggable battery breakers and DIN mounted load breakers ensures easy configurability as well as “in field” replacement. The power system has two controller options, Smartpack2 or Smartpack S which both has all the functionality required in present and future applications.
Techinical Data:
| AC Input | |
| Max input AC Voltage | 305 VAC |
| Mains configuration | 230VAC Single phase;230VAC 3 phase (Δ);230/400VAC 3 phase (Y) |
| DC output | |
| Current (maximum) | 500 ADC |
| Max voltage | 48 VDC |
| Max power | 24 kW |
| Battery Distribution | |
| Breaker positions up to | 8 |
| Breaker rating up to | 250A |
| LVBD | Yes |
| DC load distribution | |
| Breaker positions up to | 20 |
| Breaker rating up to | 125A |
| LVLD | Yes |
Related Products:
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
Product Tags:
|
|
19inch Flatpack2 48V 24KW Power System 241115.105 Images
|
